!curl -L http://i.imgur.com/8o9DXSj.jpeg --output image.jpg

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0
100 44094  100 44094    0     0   241k      0 --:--:-- --:--:-- --:--:--  241k

from PIL import Image

img = Image.open("image.jpg")

from transformers import AutoProcessor, SiglipVisionModel, SiglipVisionConfig

processor = AutoProcessor.from_pretrained("google/siglip-base-patch16-224")
vision_model = SiglipVisionModel.from_pretrained("google/siglip-base-patch16-224", config=SiglipVisionConfig(vision_use_head=False))

vision_model

SiglipVisionModel(
  (vision_model): SiglipVisionTransformer(
    (embeddings): SiglipVisionEmbeddings(
      (patch_embedding): Conv2d(3, 768, kernel_size=(16, 16), stride=(16, 16), padding=valid)
      (position_embedding): Embedding(196, 768)
    )
    (encoder): SiglipEncoder(
      (layers): ModuleList(
        (0-11): 12 x SiglipEncoderLayer(
          (self_attn): SiglipSdpaAttention(
            (k_proj): Linear(in_features=768, out_features=768, bias=True)
            (v_proj): Linear(in_features=768, out_features=768, bias=True)
            (q_proj): Linear(in_features=768, out_features=768, bias=True)
            (out_proj): Linear(in_features=768, out_features=768, bias=True)
          )
          (layer_norm1): LayerNorm((768,), eps=1e-06, elementwise_affine=True)
          (mlp): SiglipMLP(
            (activation_fn): PytorchGELUTanh()
            (fc1): Linear(in_features=768, out_features=3072, bias=True)
            (fc2): Linear(in_features=3072, out_features=768, bias=True)
          )
          (layer_norm2): LayerNorm((768,), eps=1e-06, elementwise_affine=True)
        )
      )
    )
    (post_layernorm): LayerNorm((768,), eps=1e-06, elementwise_affine=True)
  )
)

import torch
from torch import nn
from torch.nn import functional as F
from dataclasses import dataclass

from torchvision import transforms

def preprocess_image(image, image_size=224):
    preprocess = transforms.Compose([
        transforms.Resize((image_size, image_size)),
        transforms.ToTensor(),
        transforms.Normalize(
            mean=[0.485, 0.456, 0.406],
            std=[0.229, 0.224, 0.225]
        )
    ])

    image_tensor = preprocess(image)
    #(3, 224, 224) --> unsqueeze --> (1, 3, 224, 224)
    image_tensor = image_tensor.unsqueeze(0)
    return image_tensor

image_tensor = preprocess_image(img)

embed_dim = 768
patch_size = 16
image_size = 224
num_patches = (image_size // patch_size) ** 2

with torch.no_grad():
    patch_embedding = nn.Conv2d(in_channels=3, out_channels=embed_dim, kernel_size=patch_size, stride=patch_size)
    patches = patch_embedding(image_tensor)

patches.shape, num_patches

(torch.Size([1, 768, 14, 14]), 196)

position_embedding = nn.Embedding(num_patches, embed_dim)
position_ids = torch.arange(num_patches).expand((1, -1))

position_ids.shape

torch.Size([1, 196])

# after flatten (1, 768, 196)
embeddings = patches.flatten(start_dim=2, end_dim=-1)
# (1, 768, 196) -> (1, 196, 768)
embeddings = embeddings.transpose(1,2)

embeddings = embeddings + position_embedding(position_ids)

embeddings.shape

torch.Size([1, 196, 768])

import matplotlib.pyplot as plt

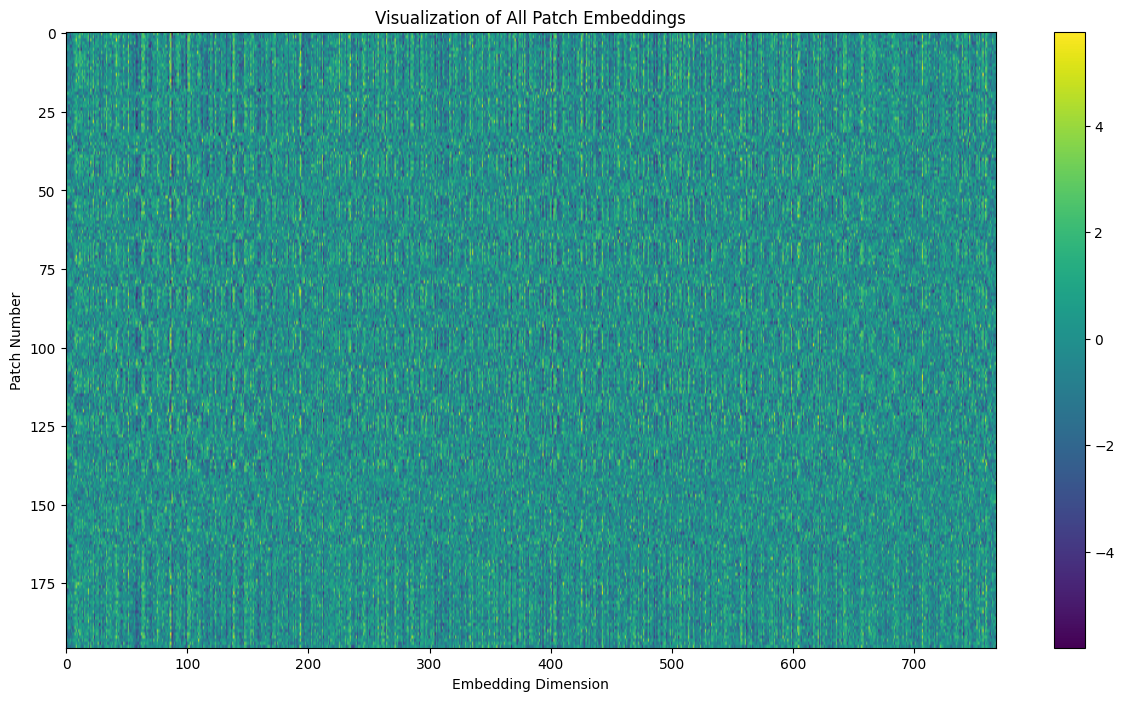

# it should look all random, since the weights are random at the initialization
# Visualize all patch embeddings
patches_viz = embeddings[0].detach().numpy()  # Shape: [196, 768]

plt.figure(figsize=(15, 8))
plt.imshow(patches_viz, aspect='auto', cmap='viridis')
plt.colorbar()
plt.title('Visualization of All Patch Embeddings')
plt.xlabel('Embedding Dimension')
plt.ylabel('Patch Number')
plt.show()

vision_model.eval()
inputs = processor(images=img, return_tensors="pt")

with torch.no_grad():
    patch_embeddings = vision_model.vision_model.embeddings(inputs.pixel_values)

print(patch_embeddings.shape)

patches_viz = patch_embeddings[0].detach().numpy()  # Shape: [196, 768]

plt.figure(figsize=(15, 8))
plt.imshow(patches_viz, aspect='auto', cmap='viridis')
plt.colorbar()
plt.title('Trained Model: All Patch Embeddings')
plt.xlabel('Embedding Dimension')
plt.ylabel('Patch Number')
plt.show()

torch.Size([1, 196, 768])

@dataclass
class SiglipVisionConfig:
  num_channels: int = 3
  embed_dim: int = 768
  image_size: int = 224
  patch_size: int = 16

class SiglipVisionEmbeddings(nn.Module):
  def __init__(self, config: SiglipVisionConfig):
    super().__init__()
    self.config = config

    self.num_channels = config.num_channels
    self.embed_dim = config.embed_dim
    self.image_size = config.image_size
    self.patch_size = config.patch_size

    self.patch_embedding = nn.Conv2d(
      in_channels=self.num_channels,
      out_channels=self.embed_dim,
      kernel_size=self.patch_size,
      stride=self.patch_size,
      padding="valid",
    )

    self.num_patches = (self.image_size // self.patch_size) ** 2
    self.num_positions = self.num_patches
    self.position_embedding = nn.Embedding(self.num_positions, self.embed_dim)
    self.register_buffer(
      "position_ids",
      torch.arange(self.num_positions).expand((1, -1)),
      persistent=False,
    )

  def forward(self, pixel_values: torch.FloatTensor) -> torch.Tensor:
    B, C, H, W = pixel_values.shape

    patch_embeds = self.patch_embedding(pixel_values)
    embeddings = patch_embeds.flatten(start_dim=2, end_dim=-1)
    embeddings = embeddings.transpose(1, 2)
    embeddings = embeddings + self.position_embedding(self.position_ids)
    return embeddings

embd = SiglipVisionEmbeddings(SiglipVisionConfig())
embd(image_tensor).shape

torch.Size([1, 196, 768])

from transformers import SiglipVisionModel as HFSiglipVisionModel

our_state_dict = embd.state_dict()
hf_state_dict = {k.replace("vision_model.embeddings.", ""): v for k, v in vision_model.state_dict().items() if "vision_model.embeddings." in k}
our_state_dict.update(hf_state_dict)
embd.load_state_dict(our_state_dict)

with torch.no_grad():
    our_output = embd(image_tensor)
    hf_output = vision_model.vision_model.embeddings(image_tensor)
    print("Max difference between our output and HF output:", torch.max(torch.abs(our_output - hf_output))) # =0, so they match!

Max difference between our output and HF output: tensor(0.)

import math

class Head(nn.Module):
    """ A single head of the multi-head attention """

    def __init__(self, n_in, n_head, context_length):
        super().__init__()
        self.head_size = n_head
        self.key = nn.Linear(n_in, n_head, bias=False)
        self.query = nn.Linear(n_in, n_head, bias=False)
        self.value = nn.Linear(n_in, n_head, bias=False)

    def forward(self, x):
        B, T, C = x.shape
        k = self.key(x)
        q = self.query(x)
        v = self.value(x)
        wei = (q @ k.transpose(-2, -1)) * (1.0 / math.sqrt(self.head_size))
        wei = F.softmax(wei, dim=-1)
        out = wei @ v
        return out

class MultiHeadAttention(nn.Module):
    """ Multi-head attention implementation with concatenating every head's output"""

    def __init__(self, num_head, n_in, head_size, context_length):
        super().__init__()
        self.head_size = head_size
        self.num_head = num_head
        self.heads = [Head(n_in, head_size, context_length) for _ in range(num_head)]
        self.proj = nn.Linear(n_in, n_in)


    def forward(self, x):
        out = [h(x) for h in self.heads]
        out = torch.concat(out, -1)
        out = self.proj(out)
        return out

@dataclass
class SiglipVisionConfig:
    num_channels: int = 3
    image_size: int = 224
    patch_size: int = 16
    num_attention_heads: int = 12
    hidden_size: int = 768
    attention_dropout: float = 0.0

class SiglipAttention(nn.Module):
    def __init__(self, config: SiglipVisionConfig):
        super().__init__()
        self.config = config
        self.embed_dim = config.hidden_size
        self.num_heads = config.num_attention_heads
        self.dropout = config.attention_dropout

        self.k_proj = nn.Linear(self.embed_dim, self.embed_dim)
        self.v_proj = nn.Linear(self.embed_dim, self.embed_dim)
        self.q_proj = nn.Linear(self.embed_dim, self.embed_dim)
        self.out_proj = nn.Linear(self.embed_dim, self.embed_dim)

    def forward(self, hidden_states):
        # the hidden states are the embeddings of the patches, so (batch_size, num_patches, embed_dim)
        B, T, C = hidden_states.shape
        q_states = self.q_proj(hidden_states)
        k_states = self.k_proj(hidden_states)
        v_states = self.v_proj(hidden_states)

        q_states = q_states.view(B, T, self.num_heads, C // self.num_heads).transpose(1, 2)
        k_states = k_states.view(B, T, self.num_heads, C // self.num_heads).transpose(1, 2)
        v_states = v_states.view(B, T, self.num_heads, C // self.num_heads).transpose(1, 2)

        attn_weights = (q_states @ k_states.transpose(-2, -1)) * (1.0 / math.sqrt(k_states.size(-1)))
        attn_weights = F.softmax(attn_weights, dim=-1).to(q_states.dtype)
        attn_weights = F.dropout(attn_weights, p=self.dropout, training=self.training)
        attn_outs = attn_weights @ v_states
        attn_outs = attn_outs.transpose(1, 2)
        attn_outs = attn_outs.reshape(B, T, C).contiguous()
        attn_outs = self.out_proj(attn_outs)
        return attn_outs

batch_size = 1
num_patches = 196
embed_dim = 768

hidden_states = torch.randn(batch_size, num_patches, embed_dim)
config = SiglipVisionConfig(
    attention_dropout=0.0,
    num_attention_heads=12,
    hidden_size=768
)
attention = SiglipAttention(config)
output = attention(hidden_states)

print(f"Input shape: {hidden_states.shape}")
print(f"Output shape: {output.shape}")

Input shape: torch.Size([1, 196, 768])
Output shape: torch.Size([1, 196, 768])

hf_state_dict = vision_model.vision_model.state_dict()
our_state_dict = attention.state_dict()

key_mapping = {
    'k_proj.weight': 'encoder.layers.0.self_attn.k_proj.weight',
    'k_proj.bias': 'encoder.layers.0.self_attn.k_proj.bias',
    'v_proj.weight': 'encoder.layers.0.self_attn.v_proj.weight',
    'v_proj.bias': 'encoder.layers.0.self_attn.v_proj.bias',
    'q_proj.weight': 'encoder.layers.0.self_attn.q_proj.weight',
    'q_proj.bias': 'encoder.layers.0.self_attn.q_proj.bias',
    'out_proj.weight': 'encoder.layers.0.self_attn.out_proj.weight',
    'out_proj.bias': 'encoder.layers.0.self_attn.out_proj.bias'
}

for our_key, hf_key in key_mapping.items():
    our_state_dict[our_key].copy_(hf_state_dict[hf_key])

attention.load_state_dict(our_state_dict)

with torch.no_grad():
    our_output = attention(hidden_states)
    hf_output = vision_model.vision_model.encoder.layers[0].self_attn(hidden_states)[0]
    max_diff = torch.max(torch.abs(our_output - hf_output))
    print(f"Max difference between our output and HF output: {max_diff:.6f}")
    print((torch.isclose(our_output, hf_output, atol=1e-6)==0).sum())

Max difference between our output and HF output: 0.000001
tensor(0)

@dataclass
class SiglipVisionConfig:
    num_channels: int = 3
    image_size: int = 224
    patch_size: int = 16
    num_attention_heads: int = 12
    hidden_size: int = 768
    attention_dropout: float = 0.0
    intermediate_size: int = 3072

class SiglipMLP(nn.Module):
    def __init__(self, config: SiglipVisionConfig):
        super().__init__()
        self.config = config
        self.fc1 = nn.Linear(config.hidden_size, config.intermediate_size)
        self.fc2 = nn.Linear(config.intermediate_size, config.hidden_size)

    def forward(self, hidden_states: torch.Tensor) -> torch.Tensor:
        hidden_states = self.fc1(hidden_states)
        hidden_states = nn.functional.gelu(hidden_states, approximate="tanh")
        hidden_states = self.fc2(hidden_states)
        return hidden_states

mlp = SiglipMLP(SiglipVisionConfig(hidden_size=768, intermediate_size=3072))
mlp(torch.randn(1, 196, 768)).shape

torch.Size([1, 196, 768])

@dataclass
class SiglipVisionConfig:
    num_channels: int = 3
    image_size: int = 224
    patch_size: int = 16
    num_attention_heads: int = 12
    hidden_size: int = 768 # `embed_dim` --> `hidden_size`, just renamed it.
    attention_dropout: float = 0.0
    intermediate_size: int = 3072
    layer_norm_eps: float = 1e-6

class SiglipVisionEmbeddings(nn.Module):
    def __init__(self, config: SiglipVisionConfig):
        super().__init__()
        self.config = config

        self.num_channels = config.num_channels
        self.embed_dim = config.hidden_size
        self.image_size = config.image_size
        self.patch_size = config.patch_size

        self.patch_embedding = nn.Conv2d(
            in_channels=self.num_channels,
            out_channels=self.embed_dim,
            kernel_size=self.patch_size,
            stride=self.patch_size, # there won't be any overlapping since the stride is equal to the kernel size
            padding="valid",
        )
        self.num_patches = (self.image_size // self.patch_size) ** 2 # initially the images are square, so the patch sizes.
        self.num_positions = self.num_patches # this is the number of positions in the sequence
        self.position_embedding = nn.Embedding(self.num_positions, self.embed_dim)
        self.register_buffer( # this is a buffer for the position ids, which will be a tensor of shape [1, num_patches]
            "position_ids",
            torch.arange(self.num_positions).expand((1, -1)),
            persistent=False, # this is a buffer, so it won't be updated during the forward pass
        )

    def forward(self, pixel_values: torch.FloatTensor) -> torch.Tensor:
        B, C, H, W = pixel_values.shape
        patch_embeds = self.patch_embedding(pixel_values)
        embeddings = patch_embeds.flatten(start_dim=2, end_dim=-1)
        embeddings = embeddings.transpose(1, 2)
        embeddings = embeddings + self.position_embedding(self.position_ids) # [batch_size, # patches, embed_dim]
        return embeddings

class SiglipEncoderLayer(nn.Module):
    def __init__(self, config: SiglipVisionConfig):
        super().__init__()
        self.embed_dim = config.hidden_size
        self.self_attn = SiglipAttention(config)
        self.layer_norm1 = nn.LayerNorm(self.embed_dim, eps=config.layer_norm_eps)
        self.mlp = SiglipMLP(config)
        self.layer_norm2 = nn.LayerNorm(self.embed_dim, eps=config.layer_norm_eps)


    def forward(self, hidden_states):
        residual = hidden_states
        hidden_states = self.layer_norm1(hidden_states)
        hidden_states = self.self_attn(hidden_states)
        hidden_states = residual + hidden_states

        residual = hidden_states
        hidden_states = self.layer_norm2(hidden_states)
        hidden_states = self.mlp(hidden_states)
        hidden_states = residual + hidden_states
        return hidden_states

encoder_layer = SiglipEncoderLayer(SiglipVisionConfig(hidden_size=768, intermediate_size=3072))
encoder_layer(torch.randn(1, 196, 768)).shape

torch.Size([1, 196, 768])

vision_model

SiglipVisionModel(
  (vision_model): SiglipVisionTransformer(
    (embeddings): SiglipVisionEmbeddings(
      (patch_embedding): Conv2d(3, 768, kernel_size=(16, 16), stride=(16, 16), padding=valid)
      (position_embedding): Embedding(196, 768)
    )
    (encoder): SiglipEncoder(
      (layers): ModuleList(
        (0-11): 12 x SiglipEncoderLayer(
          (self_attn): SiglipSdpaAttention(
            (k_proj): Linear(in_features=768, out_features=768, bias=True)
            (v_proj): Linear(in_features=768, out_features=768, bias=True)
            (q_proj): Linear(in_features=768, out_features=768, bias=True)
            (out_proj): Linear(in_features=768, out_features=768, bias=True)
          )
          (layer_norm1): LayerNorm((768,), eps=1e-06, elementwise_affine=True)
          (mlp): SiglipMLP(
            (activation_fn): PytorchGELUTanh()
            (fc1): Linear(in_features=768, out_features=3072, bias=True)
            (fc2): Linear(in_features=3072, out_features=768, bias=True)
          )
          (layer_norm2): LayerNorm((768,), eps=1e-06, elementwise_affine=True)
        )
      )
    )
    (post_layernorm): LayerNorm((768,), eps=1e-06, elementwise_affine=True)
  )
)

@dataclass
class SiglipVisionConfig:
    num_hidden_layers: int = 12 # number of hidden layers in the encoder as in the paper
    num_channels: int = 3
    image_size: int = 224
    patch_size: int = 16
    num_attention_heads: int = 12
    hidden_size: int = 768
    intermediate_size: int = 3072
    layer_norm_eps: float = 1e-6
    attention_dropout: float = 0.0


class SiglipEncoder(nn.Module):
    def __init__(self, config: SiglipVisionConfig):
        super().__init__()
        self.config = config
        self.layers = nn.ModuleList([SiglipEncoderLayer(config) for _ in range(config.num_hidden_layers)])


    def forward(self, hidden_states):
        for layer in self.layers:
            hidden_states = layer(hidden_states)
        return hidden_states

encoder = SiglipEncoder(SiglipVisionConfig(hidden_size=768, intermediate_size=3072))
encoder(torch.randn(1, 196, 768)).shape

torch.Size([1, 196, 768])

class SiglipVisionTransformer(nn.Module):
    def __init__(self, config: SiglipVisionConfig):
        super().__init__()
        self.config = config
        self.embeddings = SiglipVisionEmbeddings(config)
        self.encoder = SiglipEncoder(config)
        self.post_layernorm = nn.LayerNorm(config.hidden_size, eps=config.layer_norm_eps)

    def forward(self, pixel_values):
        hidden_states = self.embeddings(pixel_values)
        last_hidden_state = self.encoder(hidden_states)
        last_hidden_state = self.post_layernorm(last_hidden_state)
        return last_hidden_state

siglip = SiglipVisionTransformer(SiglipVisionConfig(hidden_size=768, intermediate_size=3072))
siglip(image_tensor).shape

torch.Size([1, 196, 768])

class SiglipVisionModel(nn.Module):
    def __init__(self, config: SiglipVisionConfig):
        super().__init__()
        self.config = config
        self.vision_model = SiglipVisionTransformer(config)

    def forward(self, pixel_values):
        return self.vision_model(pixel_values)

siglip = SiglipVisionModel(SiglipVisionConfig(hidden_size=768, intermediate_size=3072))
siglip(image_tensor).shape

torch.Size([1, 196, 768])

hf_state_dict = vision_model.state_dict()
our_state_dict = siglip.state_dict()

siglip.load_state_dict(hf_state_dict)

<All keys matched successfully>
