Iterative Closest Point (ICP)

Problem formulation and SVD solution

Given matched pairs (p_i, q_i), the least squares problem \[ \min_{R\in SO(d),\,t\in\mathbb{R}^d} \sum_i \lVert R p_i + t - q_i\rVert^2 \] has the closed-form solution via centroid subtraction and SVD of \[ H=\sum_i (p_i-\bar p)(q_i-\bar q)^\top,\quad H=USV^\top,\quad R^\star=VU^\top,\quad t^\star=\bar q - R^\star \bar p. \] ICP alternates nearest-neighbor correspondence with this closed-form update.

import numpy as np


# Optional SciPy speed-up
try:
    from scipy.spatial import cKDTree as _cKDTree  # type: ignore[import-not-found]

    _HAS_SCIPY = True
except Exception:
    _cKDTree = None  # type: ignore[assignment]
    _HAS_SCIPY = False


def nearest_neighbors(query: np.ndarray, ref: np.ndarray):
    """
    Return (distances, indices) of nearest neighbors in 'ref' for each row in 'query'.
    Uses cKDTree if available; otherwise a vectorized NumPy fallback.
    """
    if _HAS_SCIPY and _cKDTree is not None:
        tree = _cKDTree(ref)
        dists, idx = tree.query(query, k=1)
        return dists, idx
    QN = query.shape[0]
    idx = np.empty(QN, dtype=int)
    dists = np.empty(QN, dtype=float)
    chunk = 4096
    for start in range(0, QN, chunk):
        end = min(QN, start + chunk)
        diff = query[start:end, None, :] - ref[None, :, :]
        dist2 = np.sum(diff * diff, axis=2)
        nn = np.argmin(dist2, axis=1)
        idx[start:end] = nn
        dists[start:end] = np.sqrt(dist2[np.arange(end - start), nn])
    return dists, idx


def best_rigid_transform(A: np.ndarray, B: np.ndarray):
    """
    Given paired points A, B of shape (N, d), compute R, t with R in SO(d) minimizing ||R A + t - B||_F^2.
    """
    assert A.shape == B.shape
    cA = A.mean(axis=0)
    cB = B.mean(axis=0)
    AA = A - cA
    BB = B - cB
    H = AA.T @ BB
    U, S, Vt = np.linalg.svd(H)
    R = Vt.T @ U.T
    if np.linalg.det(R) < 0:
        Vt[-1, :] *= -1
        R = Vt.T @ U.T
    t = cB - R @ cA
    return R, t


def icp_point_to_point(
    P: np.ndarray, Q: np.ndarray, R0: np.ndarray = None, t0: np.ndarray = None, max_iters: int = 50, tol: float = 1e-6
):
    """
    Point-to-point ICP that returns (R, t, history).
    P: source (N, d), Q: target (M, d).
    """
    d = P.shape[1]
    R = np.eye(d) if R0 is None else R0.copy()
    t = np.zeros(d) if t0 is None else t0.copy()
    prev_err = np.inf
    history = []

    for it in range(max_iters):
        P_tr = (R @ P.T).T + t
        dists, idx = nearest_neighbors(P_tr, Q)
        Q_match = Q[idx]
        R_delta, t_delta = best_rigid_transform(P_tr, Q_match)
        R = R_delta @ R
        t = R_delta @ t + t_delta

        mean_err = float(np.mean(dists))
        history.append((it, mean_err))
        if abs(prev_err - mean_err) < tol:
            break
        prev_err = mean_err
    return R, t, history

Synthetic experiment in 3D

We generate a random target cloud Q, apply a known rigid transform and small noise to produce P, and run ICP to estimate the transform. We then compare with ground truth and plot the convergence of the mean nearest-neighbor distance.

# pip install matplotlib  # when running locally, if missing
import numpy as np
import matplotlib.pyplot as plt

np.random.seed(7)

Q = np.random.randn(500, 3)


def random_rotation_3d():
    A = np.random.randn(3, 3)
    Qr, _ = np.linalg.qr(A)
    if np.linalg.det(Qr) < 0:
        Qr[:, -1] *= -1
    return Qr


R_true = random_rotation_3d()
t_true = np.array([0.8, -0.3, 0.5])

noise = 0.01 * np.random.randn(*Q.shape)
P = (R_true @ Q.T).T + t_true + noise

R_est, t_est, hist = icp_point_to_point(P, Q, max_iters=100, tol=1e-8)

# Ground-truth for the estimated mapping (P -> Q) is the inverse of how P was generated
R_gt = R_true.T
t_gt = -R_true.T @ t_true


def rot_angle_deg(R):
    # geodesic distance on SO(3)
    tr = np.clip((np.trace(R) - 1) / 2.0, -1.0, 1.0)
    return np.degrees(np.arccos(tr))


R_err = R_est @ R_gt.T
t_err = t_est - t_gt

print("Ground truth (inverse) R_gt = R_true^T:\n", R_gt)
print("Estimated              R_est:\n", R_est)
print("\nGround truth (inverse) t_gt = -R_true^T t_true:", t_gt)
print("Estimated              t_est:", t_est)

print("\nRotation error (deg):", rot_angle_deg(R_err))
print("Translation error (L2):", np.linalg.norm(t_err))

# RMS alignment error using true correspondences (same indices)
P_aligned = (R_est @ P.T).T + t_est
rms_true_pairs = np.sqrt(np.mean(np.sum((P_aligned - Q) ** 2, axis=1)))
print("RMS alignment error to true pairs:", rms_true_pairs)

iters = [h[0] for h in hist]
errs = [h[1] for h in hist]
plt.figure()
plt.plot(iters, errs, marker="o")
plt.xlabel("iteration")
plt.ylabel("mean nearest-neighbor distance")

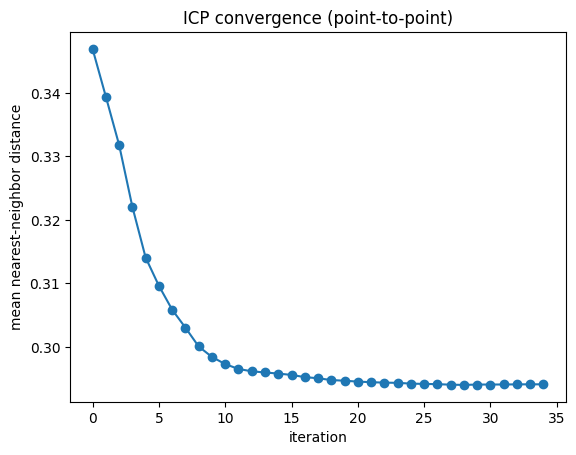

plt.title("ICP convergence (point-to-point)")
plt.show()
Ground truth (inverse) R_gt = R_true^T:
 [[-0.30130898 -0.10656241  0.94755335]
 [ 0.75309952 -0.63611162  0.16793784]
 [ 0.58485384  0.76420315  0.27191824]]
Estimated              R_est:
 [[ 0.9895734   0.07507073 -0.12291813]
 [-0.08181471  0.99535393 -0.05076323]
 [ 0.11853621  0.06029046  0.99111767]]

Ground truth (inverse) t_gt = -R_true^T t_true: [-0.26469822 -0.87728202 -0.37458125]
Estimated              t_est: [-0.34373394  0.1651141  -0.42091583]

Rotation error (deg): 150.5185966108678
Translation error (L2): 1.0464144519643552
RMS alignment error to true pairs: 2.6873782799382413
